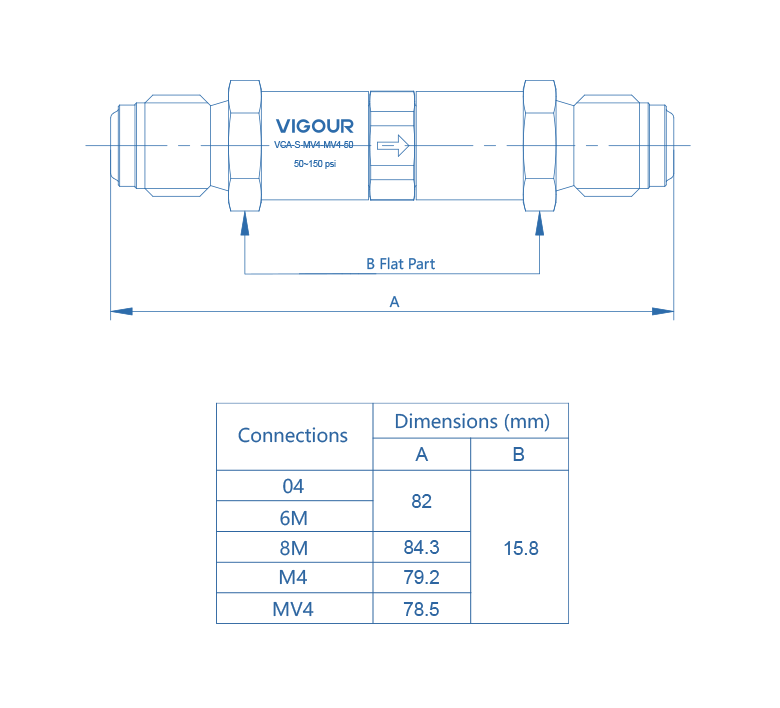

VCA - Adjustable Check Valve
Adjustable Check Valve
Adjustable Check Valve
Product FeaturesProduct Features
  • Check Valve with Adjustable Pressure
  • The locking screw keeps the setting
  • Set the opening pressure via the adjusting screw
ParameterParameter
  • Working pressure
    Max. 3000 psig (206 bar)
  • Opening pressure
    3~350psi
  • Leakage rate
    Bubble-tight
Material QualityMaterial Quality
  • Body material
    316L
  • O-ring
    FKM (Standard) EPDM / FFKM (optional)
Download
