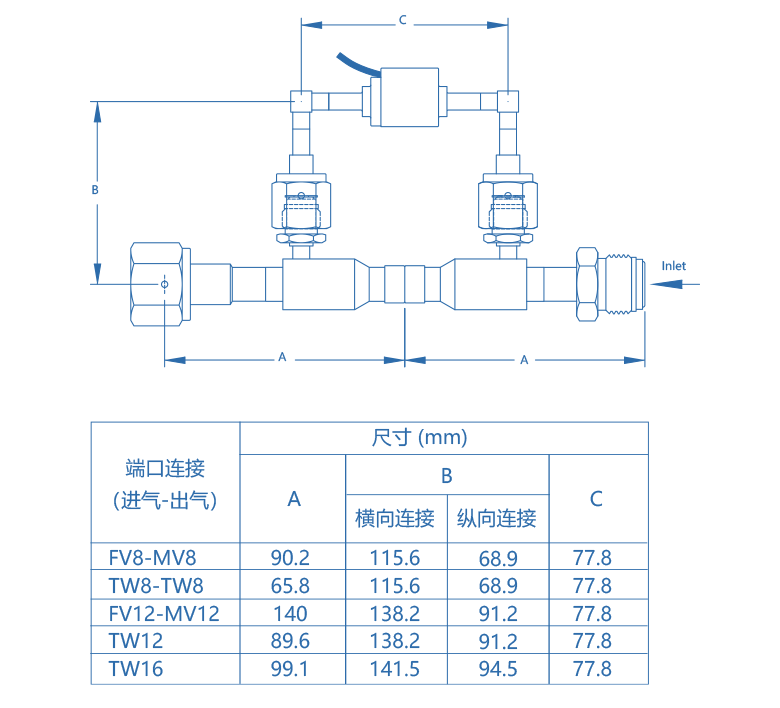

VEFS2 - Flow Switch
Flow Switch
Flow Switch
Product FeaturesProduct Features
  • Flow switch for high flow
  • Available with horizontal or vertical main line
  • Minimal pressure drop through device
ParameterParameter
  • Source pressure
    vacuum to 3500 psig (241 bar) 1/2” vacuum to 3000 psig (207 bar) 3/4” vacuum to 2200 psig (152 bar) 1”
  • Accuracy
    ±20%
  • Operating temperature
    -10~175℉ (-23~80℃)
  • Inlet / Outlet
    1/2” 3/4” tube weld / VFS fitting， 1” tube weld
  • Leakage（Outboard）
    <1x10-9 mbar I/s He
  • Power
    30VDC / 3W max
  • Switching current
    0.2A max
  • Carrying current
    0.5A max
  • Cable length
    3m
  • Wire gauge
    24AWG
Material QualityMaterial Quality
  • Body
    316L
