IGS Check Valves

IGS Check Valves

Product FeaturesProduct Features

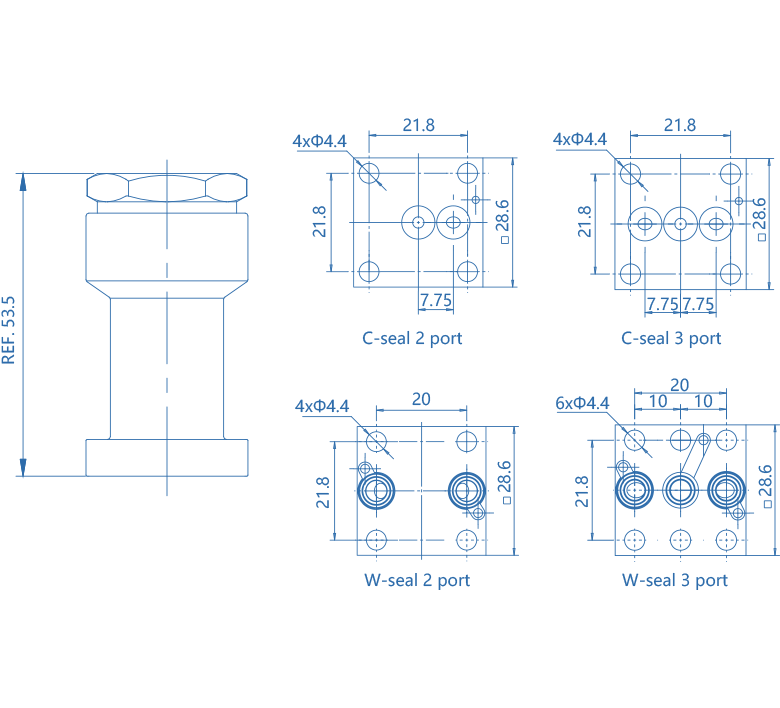

W-seal and C-seal optional
The wet surface is treated with EP, Max. 5μin. Ra.
100% Helium-leak-tested

ParameterParameter

Max. Working Pressure
150 psig
Max. Working Temp
14℉~176℉(-10℃~80℃)
Suface Finish
Max. 5μin. Ra
Cracking Pressure
0.33 psig
Leak Rate (Internal)
1x10-9 mbar I/s He
Leak Rate (External)
1x10-9 mbar I/s He
Flow Capacity
Cv=0.2

Material QualityMaterial Quality

Body
316L EP / 316L VIM-VAR
