Note: For other connection standards, please consult Haogu Company
VSR - 50UBP-S-10-7-3P-1-2-3-R25-HF-VS
| p- | s- | 10- | 7- | 3p- | 1-2-3 | R25 | HF | VS |

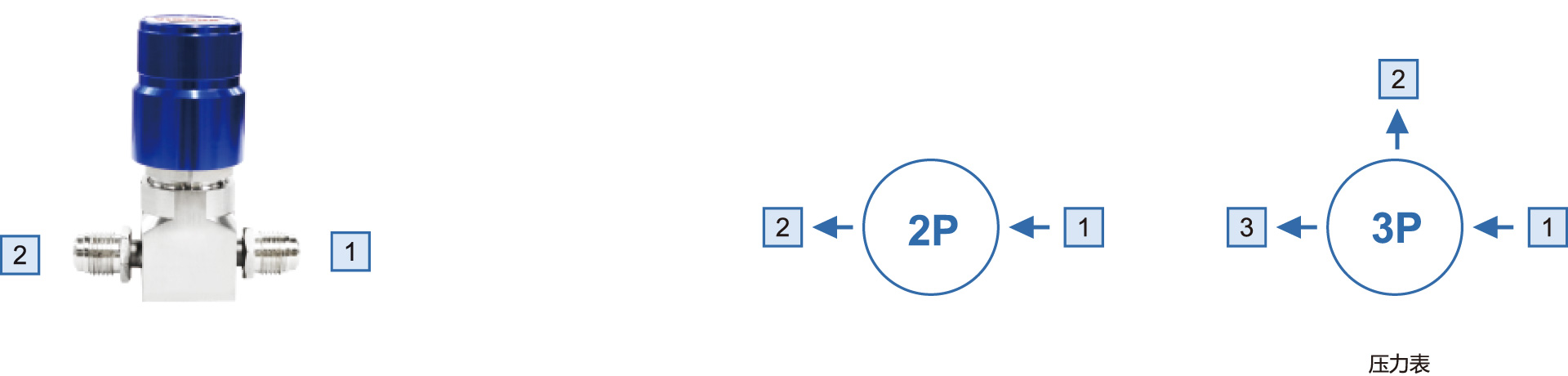

| 安装方式 | 材质 | 进气压力 | 出气压力 | 母体孔位 | 接口形式选择 | 表面光洁度 | Cv 选项 | 阀座选项 |
| 空白: 底部支架安装 | S: 316L | 10: 150 psig | V0.7: Vac to 10 psig * | 2P: 2 孔 | 进/出气连接 | 空白: 10 μin. Ra | 空白: Cv=0.06 | 空白: PCTFE |
| P: 面板安装* | SHP: 316L 本体和喷嘴 |
| V2: Vac to 30 psig | 3P: 3 A孔 | FV4: 1/4" VFS 螺纹 | TW4: 1/4" 焊接接管 | R25: 25 μin. Ra | HF: Cv=0.1 | VS: Vespel® |
| 面板安装孔径：Ф36mm | Hastelloy® C22 阀杆 |
| V4: Vac to 60 psig |
| MV4: 1/4" VFS 螺纹 | P: 压力表 (1/4" VFS接口) |
|
|
|
| *所有选项里的膜片材质均为 Hastelloy® C276 |
| V7: Vac to 100 psig |
|
|
|
|
|
|
|
|
| 0.7: to 10 psig * |
|
|
|
|
|
|
|
|
| 2: to 30 psig |
|
|
|
|
|
|
|
|
| 4: to 60 psig |
|
|
|
|
|
|
|
|
| 7: to 100 psig |
|
|
|
|
|
|
