VSR-6EL - Pressure Regulator

Pressure Regulator

Pressure Regulator

Product FeaturesProduct Features

Diaphragm design high pressure piston regulator

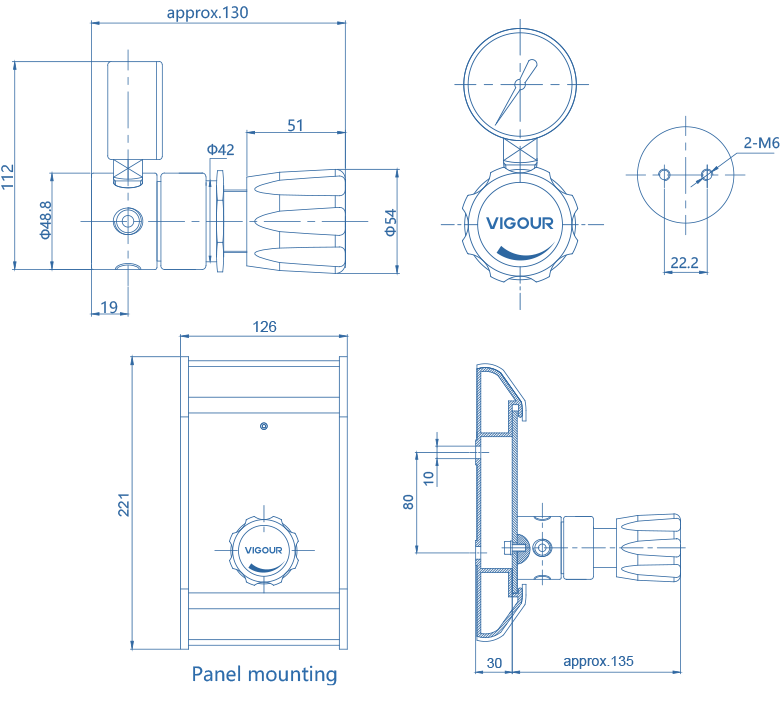

Line and Panel mounting pressure regulator
Brass chrome plated body and bonnet for inert, reactive, flammable and oxidizing gas and mixtures up to grade 6.0
Stainless steel 316L body for corrosive gases
4 ports flexible configuration
Stable outlet pressure
Simple outlet pressure limitation by handwheel
Inlet filter
Tested for use with oxygen

ParameterParameter

Inlet pressure P1
max. 300 bar
Outlet pressure P2
50/100/200 bar
Inlets and Outlets
1/4”NPT(F)
Temperature range
-30℃ to +74℃
Leak rate (to atmosphere)
1X10-8 mbar I/s He
Leak rate (Via seat)
1X10-6 mbar I/s He
Flow capacity
Cv=0.15

Material QualityMaterial Quality

Body
316L / Chrome Plated Brass
Valve seat
PCTFE
Piston
SS 316L
O-ring
Viton®（FKM）/ Kalrez®（FFKM）optional
Filter
SS 316L
