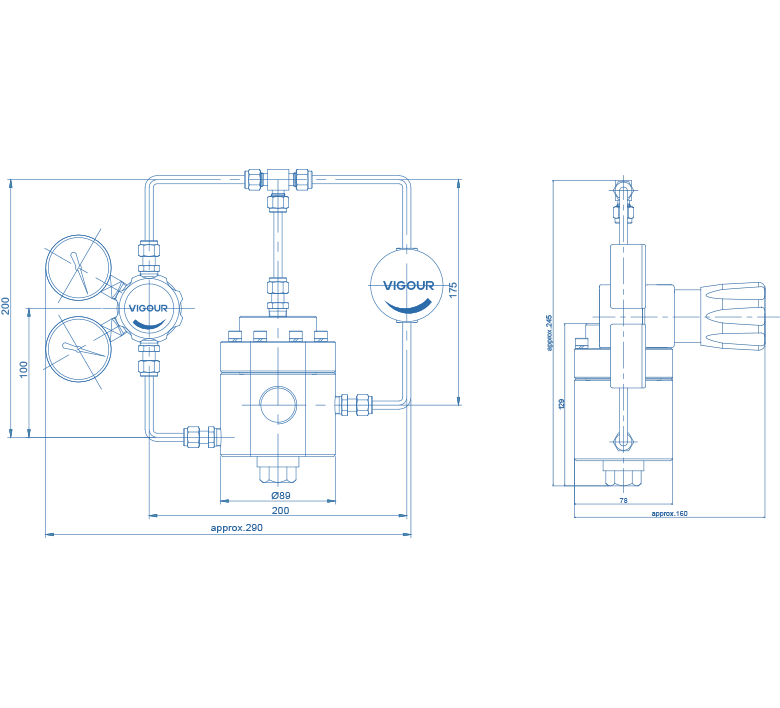

VSR-60 - Pilot Operated Pressure Regulator
Pilot Operated Pressure Regulator
Pilot Operated Pressure Regulator
Product FeaturesProduct Features
  • Balancing valve core design
  • Diaphragm type
  • Dynamically adjusted pilot pressure regulator
  • Pilot-operated pressure regulator can improve performance
  • Provides good output stability
  • Tested for use with oxygen
ParameterParameter
  • Inlet pressure P1
    70/200/300/400 bar
  • Outlet pressure P2
    10/25/70/100/175 bar
  • Inlets and Outlets
    3/4”/ 1”NPT(F)
  • Temperature range
    -30oC to +74oC
  • Leak rate
    Bubble-tight
  • Flow capacity
    3/4”Cv=1.95； 1”Cv=2.07
Material QualityMaterial Quality
  • Valve seat
    EPDM (Inlet pressure 70 bar)； PCTFE (Inlet pressure 70~400 bar)
  • Diaphragm
    EPDM
  • O-ring
    Viton®
  • Body
    316L
