VSP-1DE - Pressure Control Panels

Pressure Control Panels

Pressure Control Panels

Product FeaturesProduct Features

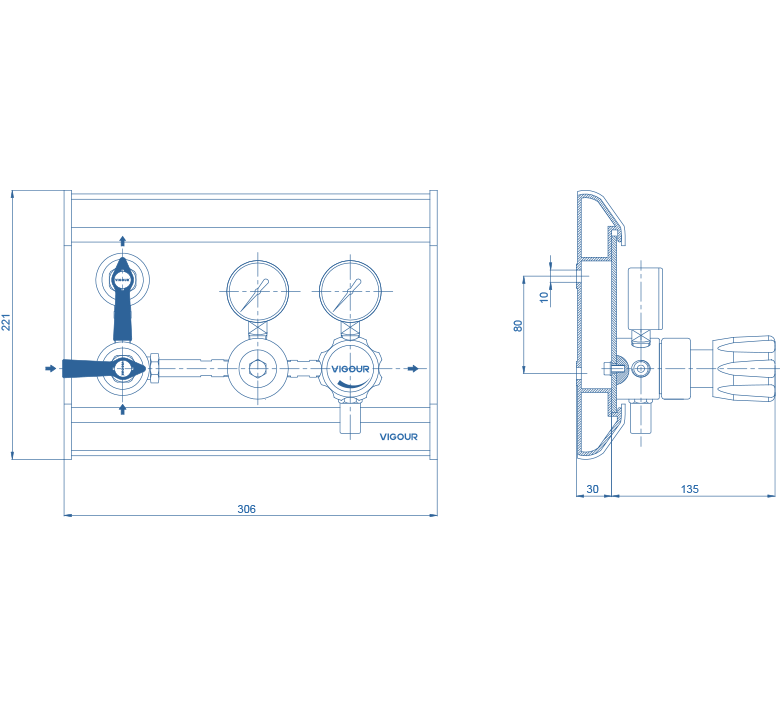

Pressure control panel
VSR-1E / VSR-6E Series single-stage regulator
Brass chrome plated body for inert, reactive, flammable and oxidizing gas and mixtures up to grade 6.0
Stainless steel 316L body for corrosive gases
Modular design
Diaphragm type shut-off valves
Suitable for inlet pressure up to 300 bar
Easy installation into safety cabinet for gas cylinders
Tested for use with oxygen

ParameterParameter

Inlet pressure P1
max. 300 bar
Outlet pressure P2
2/4/10/20/50/100/200 bar
Inlet connection
1/4”NPT(F)
Outelt connection
1/4”NPT(F)
Temperature range
-30℃ to +74℃
Leak rate (to atmosphere)
1x10-8 mbar I/s He
Leak rate (via seat)
1x10-6 mbar I/s He

Material QualityMaterial Quality

Body
316L / Chrome Plated Brass
Valve seat
PCTFE
Diaphragm (regulator)
Hastelloy®C276
Diaphragm (valve)
Elgiloy®
O-ring
Viton® (FKM) / Kalrez®(FFKM) option
Filter
SS 316L
