IGS Pressure Regulator

IGS Pressure Regulator

Product FeaturesProduct Features

Metal-to-metal seal to atmosphere

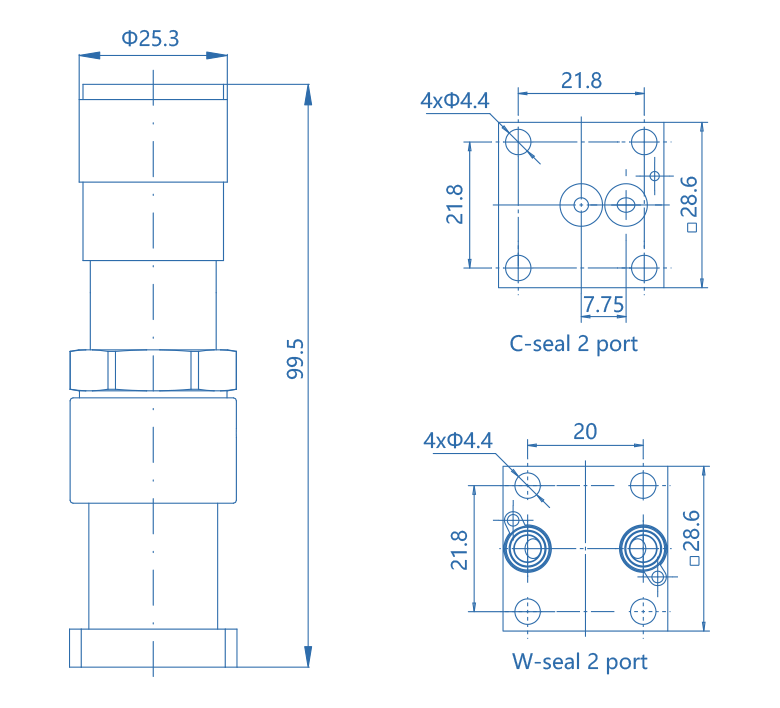

W-seal and C-seal optional
The surface finish: Max. 5μin. Ra
100% Helium-leak-tested

ParameterParameter

Max. Working Pressure
150 psig
Max. Working Temp
-40℉~140℉(-40℃~60℃)
Outlet Pressure
0~100 psig
Surface Finish
Max. 5 μin. Ra
Leak Rate (to atmosphere)
1x10-9 mbar I/s He
Leak Rate (via seat)
1x10-8 mbar I/s He
Flow Capacity
Cv=0.08

Material QualityMaterial Quality

Body
316L EP / 316L VIM-VAR
Valve Seat
PCTFE (PFA / Vespel® optional)
Diaphragm
Hastelloy® C276
