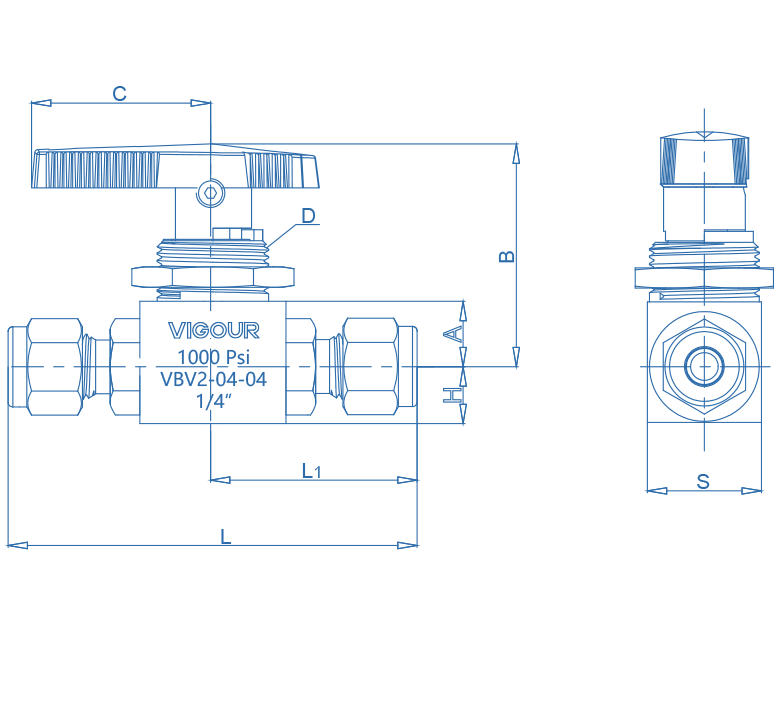

VBV2 - Ball Valves
Ball Valves
Ball Valves
Product FeaturesProduct Features
  • Bi-directional flow (fully opened or fully closed)
  • Directional handle indicating on-off position
  • Allow for panel mounting
  • Single piece ball stem to eliminate backlash
  • One piece body to eliminate multiple seal points
  • Unique, top-loaded capsule paching allows reliable switching
  • Tested for use with oxygen
ParameterParameter
  • Pressure Rating
    1000 / 3000 psig
  • Temperature range
    -54℃ to 148℃
  • Leak rate
    0.1std cc/min@1000psig(69bar)N2
  • Orifice
    Φ2.4~10.3 mm(根据端口)
Material QualityMaterial Quality
  • Body
    316
  • Seat Valve
    PTFE
Download
