VG25E - Pressure Gauges

Pressure Gauges

Pressure Gauges

Product FeaturesProduct Features

Contact pressure gauges with digital signal
Set point adjustable over 10-90% of scale
Double scale bar / psig
c/w 2 meters of cable
Tested for use with oxygen

ParameterParameter

Working Voltage
180 / 130 VDC
Max. Voltage
200 VDC
Max. ON / OFF amperage
0.5A
Contact power
10W
Contact Current (initial)
150 mΩ
Contact Capacitance
0.2 pF
Insulation resistance
1010Ω
Frequency
5.2 kHz
Working Temperature
-40℃~125℃

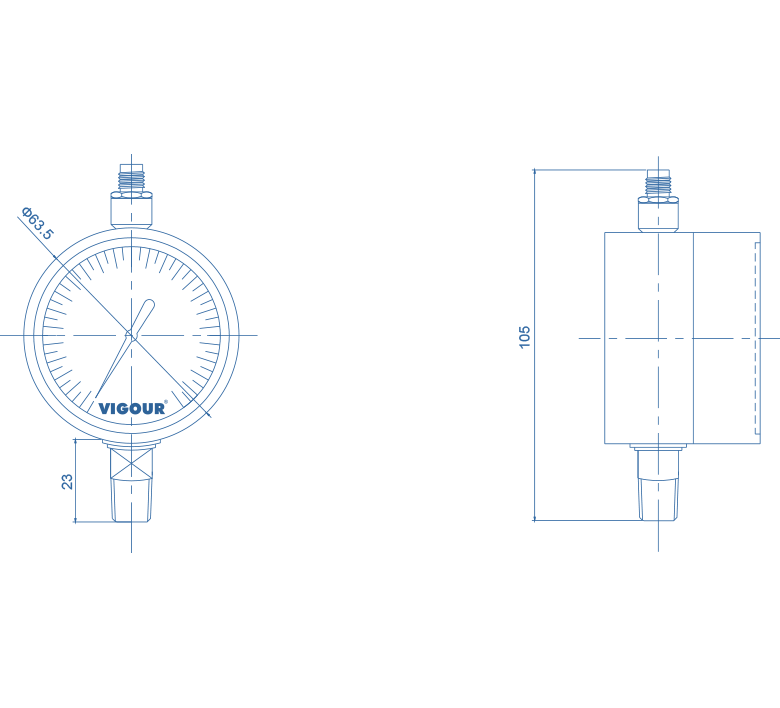

Nominal diameter
63mm
End Connection
1/4”NPT
Length of cable
2 meters
Switching accuracy
+/- 2.5% of full scale

Material QualityMaterial Quality

Body
316L
Window
Laminated safety glass PC
